Applications :

• The cables are designed for long distance telecommunication and using optical fibres in urban railways infrastructure. These low smoke halogen-free cables are laid on hooks, pulled through ducts or cable trays.

Standards :

• RATP K209B or RATP K209A

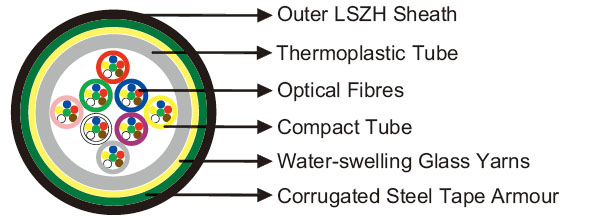

Construction :

• Compact Tube: 6 or 12 singlemode optical fibres G652 or multimode fibers assembled under thermoplastic “peelable” skin. Tube diameter: 1mm.
• Filling : Water-swelling yarns.
• Tube : Thermoplastic.
• Peripheral Strength Member : Water-swelling glass yarns.
• Armour : Corrugated steel tape armour 25/100.
• Sheath : LSZH.

Optional :

• K209A Type : For K209A type, the cables have loose tubes with 6-12 fi bers, steel wire strand as central strength member, glass yarn reinforced, incorporating a corrugated steel tape armour and an outer UV stabilized LSZH jacket.

Electrical Characteristics at 20 °C :

• Optical & Geometrical Properties for Single Mode Fibers

• Maximum Attenuation		G652
  @1310nm	dB/km	0.35
  @1550nm	dB/km	0.22
  Maximum Chromatic Dispersion
  Between 1260 and 1360nm	ps/(nm/km)	3.5
  Between 1530 and 1565nm	ps/(nm/km)	19
  Zero Dispersion Wavelength	nm	1310±11
  Zero Dispersion Slope	ps/(nm2.km)	0.09
  Numerical Aperture		0.14
  Point discontinuity	dB	0.1
  PMD (individual fi ber)	ps/km	0.2
  Maximum Cutoff Wavelength	nm	1260
  Cladding Diameter	um	125±1
  Core/Cladding Concentricity Error	um	≤0.5
  Cladding Non Circularity	%	≤1
  Coating Non Circularity	%	≤6
  Proof Test Level	Kpsi (GN/m2)	100 (0.7)
  Crush Resistance	N/cm	300
  Maximum Laying Tension	N	3000

•
• Optical & Geometrical Properties for Multimode Fibers

• 		50/125	62.5/125
  Maximum Attenuation
  @850nm	dB/km	≤2.5	≤3.0
  @1300nm	dB/km	≤0.7	≤0.8
  Maximum Chromatic Dispersion
  @850nm	MHz*km	≥500	≥200
  @1300nm	MHz*km	≥800	≥500
  Zero Dispersion Wavelength	nm	1310	1310
  Numerical Aperture	-	0.20±0.015	0.275±0.015
  Core Diameter	um	50±3	62.5±3
  Cladding Diameter	um	125±2	125±2
  Core/Cladding Concentricity Error(Offset)	um	≤1.5	≤1.5
  Coating-Clad Concentricity Error(Offset)	um	≤8	≤8
  Core Non-Circularity	%	≤6	≤6
  Cladding Non-Circularity	%	≤2 1	≤2 1
  Coating Diameter	um	245±10	245±10
  Proof-Test Level	Kpsi (GN/m2)	100 (0.7)	100 (0.7)



Mechanical and Thermal Properties :

• Minimum Bending Radius : 20×OD.
• Temperature Range : -40°C to +60°C (during operation); -10°C +60°C (during installation).

Dimensions and Weight :



K209A



Cable Code	No. of fibres	Distribution	Nominal Sheath Thickness mm	Nominal Overall Diameter mm	Nominal Weight kg/km
RO/K209A-ML-C-9-TnxFn-SR-(STA)H	1-36	6 fi bre per tubes	1.8	12	190
RO/K209A-ML-C-9-TnxFn-SR-(STA)H	42-72	6/12 fi bre per tubes	1.8	13.5	230

  Tn: Number of tubes; Fn: Number of fi bers in a tube.



K209B



Cable Code	No. of fibres	No of Tubes x No of Fibers/Tube	Nominal Sheath Thickness mm	Nominal Overall Diameter mm	Nominal Weight kg/km
Singlemode Fibres From 6 to 36 OF – G652
RO/K209B-ML-C-9-2x6-F-(STA)H	12	2 tubes of 6 OF	1.8	13	112
RO/K209B-ML-C-9-4x6-F-(STA)H	24	4 tubes of 6 OF	1.8	13	112
RO/K209B-ML-C-9-6x6-F-(STA)H	36	6 tubes of 6 OF	1.8	13	112
Singlemode Fibres From 48 to 72 OF – G652
RO/K209B-ML-C-9-8x6-F-(STA)H	48	8 tubes of 6 OF	2.5	15.5	230
RO/K209B-ML-C-9-6x12-F-(STA)H	72	6 tubes of 12 OF	2.8	15.5	230
Multimode Fibres From 6 to 36 OF – 50/125
RO/K209B-ML-C-9-1x6-F-(STA)H	6	1 tubes of 6 OF	1.8	13	112
RO/K209B-ML-C-9-2x6-F-(STA)H	12	2 tubes of 6 OF	1.8	13	112







Impact Resistant	Mineral Oil Resistant	Acid&Alkaline Resistant		Laid in Cable Trays/on Hooks	Low Toxicity



Flame Retardant NF C32-070-2.1(C2) IEC 60332-1/EN 50265-2-1	Fire Retardant NF C32-070-2.2(C1) IEC 60332-3/EN50266	Zero Halogen IEC 60754-1/NF C20-454 EN 50267-2-1	Low Smoke Emission IEC 61034/NFC20-902 EN 50268/NF C32-073	Low Corrosivity EN 50267-2-2/NF C32-074 IEC 60754-2/NF C20-453
